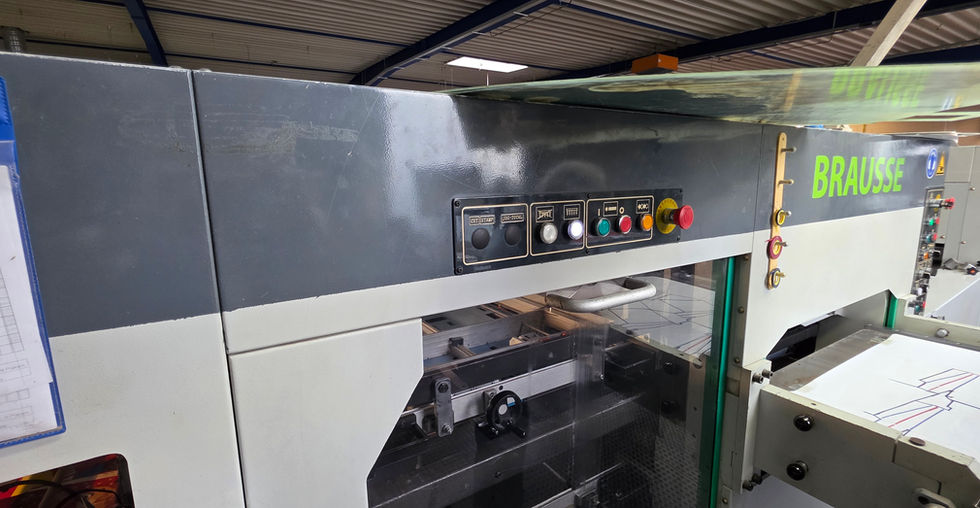

Brausse Bora 1060E

Quick lock device in Stripping station, plate with 1mm quick change system, Option in feeder for
corrugated board up to 4 mm, Paper device, modified gripperwagonlock for 0,1 tolerances, machine is
30 cm raised, Simco Antistatic in feeder, Non stop feeder, SPS control Mitsubishi, Centerline,
Sidelay on both sides BS and AS, Non-Stop delivery, paper strip inserter with counter in delivery
Sheet format Max. 1060x750 mm
Sheet format min. 400 x 370 mm
Usable Material: Paper 80-90g/m, Karton 2000g/m, Corrugated cardboard uptp 4 mm, plastic (PP,PE):
0,6 mm
Gripper edge adjustment 9,5 mm
Embossing Specifications:
Net punching area 1040 x 720 mm
Punching frame inner dimensions 1080 x 745 mm
Punching plate 1080 x 736 mm
Maximum punching force 300t
